Automatrix Automatic Valve Manifold

Safe, Fast, Reliable, Hygienic Liquid ROUTING

If you transfer liquids from multiple sources to multiple destinations, and you want to do it safely, reliably, hygienically, quickly, efficiently and automatically, then the HPS Piggable Automatrix is the most advanced, efficient and effective product available.

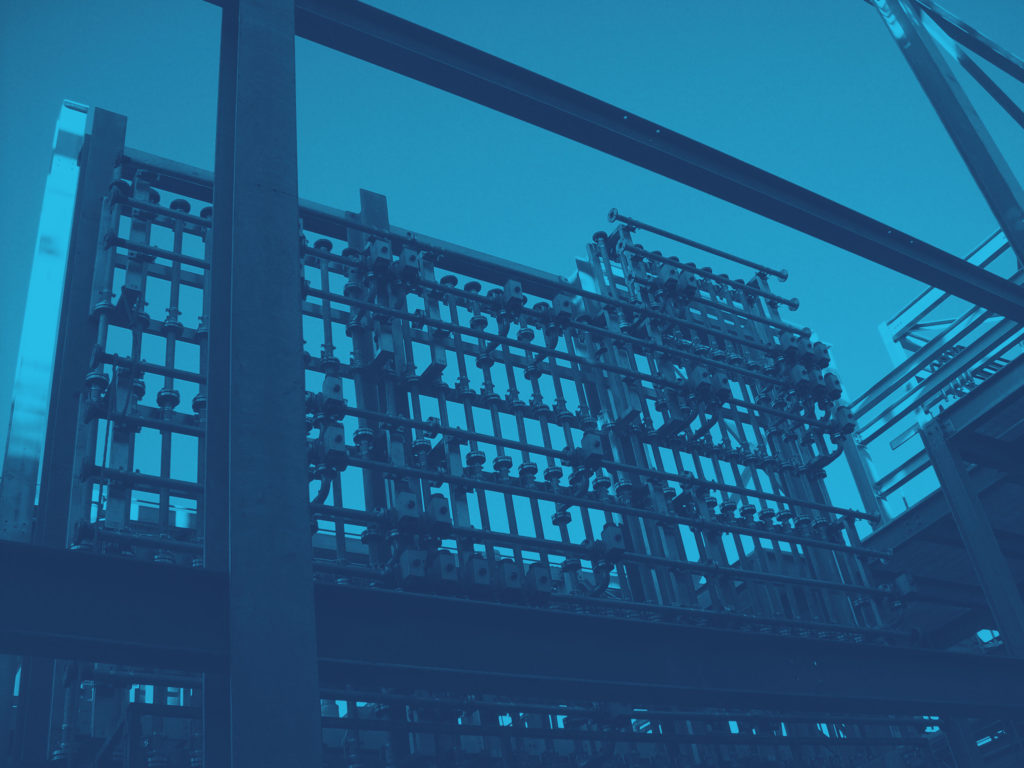

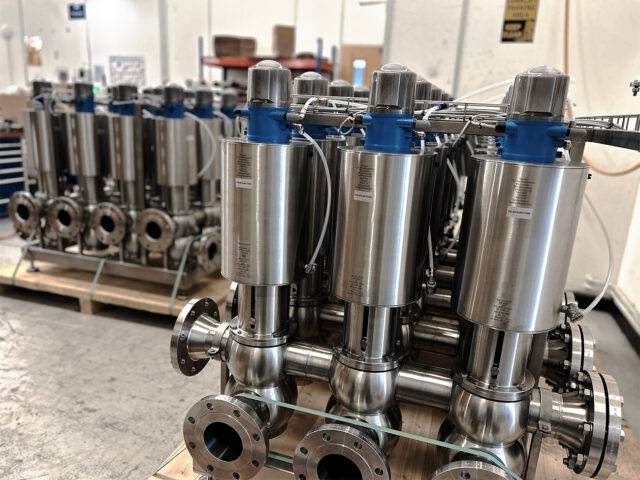

Automatrix automatic piggable valve manifold
automatrix valve manifold

For Industrial and Sanitary Processes

The HPS Automatrix is a fully automatic piggable valve manifold. Also known as a valve array or valve matrix system, it’s specially designed for both industrial and sanitary (hygienic) processes.

It enables full path selection and pigging flexibility from any product source to any destination, while automating source and destination selection. It’s used in a wide range of industries, from paint and coatings to wine transfer and bottling.

Contact Us

why use the hps PIGGABLE AUTOMATRIX

Whatever You Process, the HPS AUTOMATRIX Can Help.

icon tick

Speed

Significantly speeds up changeover and selection times by reducing manual selection procedures.
icon tick

Efficiency

The Automatrix saves considerable amounts of resources, product, time, and labour.
icon tick

Extremely Safe

Improves safety by reducing the need for manual intervention, lowering risks associated with human error.
icon tick

Space Utilisation

Minimises the need for dedicated lines and hoses, effectively freeing up valuable floor space for other operational needs.
icon tick

Product Recovery

When integrated with HPS pigging technology, the Automatrix maximises product recovery with minimal product loss throughout the transfer process.
icon tick

Future Proofing

Built to grow with your business, the Automatrix accommodates expansion seamlessly, ensuring your system adapts to evolving production needs.
icon tick

Flexibility

Fully customisable and adaptable to your specific requirements, with the capability to handle multiple sources and destinations while supporting future upgrades.
icon tick

Easy Maintenance

Designed for quick and straightforward maintenance, minimising downtime and enhancing operational efficiency.
automatrix liquid routing

powerful, fully-featured valve matrix

The HPS piggable Automatrix has many important features which differentiate it from other valve manifolds. These include:

  • Fully automatic source and destination selection
  • Available in a wide range of sizes and configurations
  • Easy to install, operate and maintain
  • Extremely space efficient
  • No limits on number of sources and destinations
  • Modular and fully expandable
  • Horizontal, vertical, portable and skid mounting options
  • Minimal internal dead space for efficient pigging



Limitless Possibilities

Designed bespoke to your requirements, an HPS piggable Automatrix comes in a wide range of sizes, configurations and formats. It’s also easy to operate and control, so operator training is minimal. Specialist minimal dead-space valves make it exceptionally efficient, and the unique design means future expansion is almost limitless.

icon flow

Cuts Out Manual Selection

The HPS piggable Automatrix cuts out almost all manual selection procedures. As well as increasing productivity and efficiency, the HPS piggable Automatrix also minimises the chances of connection errors. It cuts the amount of pipework you need, frees up space and helps you get rid of hoses. It also speeds up changeover times, reduces losses, water and labour. And, it lowers contamination and cross-contamination risks. Not to mention massively improving safety.
icon bank

Minimal Product Loss. Maximum Product Recovery

Unlike other liquid transfer matrices or automated valve manifolds, the HPS piggable Automatrix uses specialist, close fitting valve configurations with minimal dead-space or pockets. So, when pigs travel through it, they recover just about all of the product. This is much more efficient than other valve manifold systems, which have internal dead space and pockets which fill with product and can’t be pigged.
icon guide

Designed to Your Needs

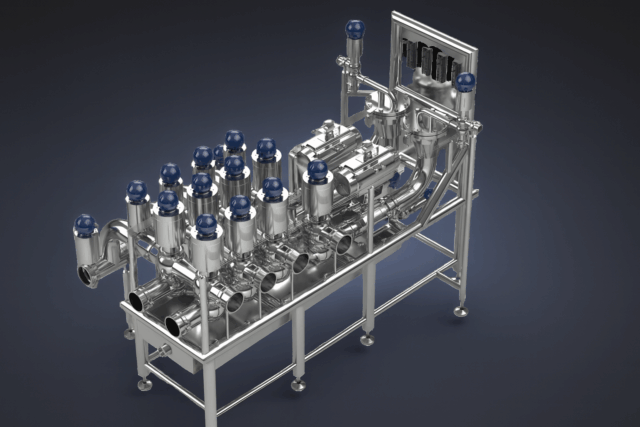

Each HPS system is uniquely designed around your specific requirements. So, there are various options. The piggable Automatrix is available in many different sizes and different mounting formats. These include horizontal, vertical, portable or as skid configurations. When supplied as a portable ‘skid’, all wiring, pneumatics & I/O marshalling is provided complete, or as clip-on modules. Whatever mounting format you choose, we offer a wide range of tube diameters, different networking options, and single or double-seat valve technology.
icon graph

Allows Virtually Limitless Future Expansion

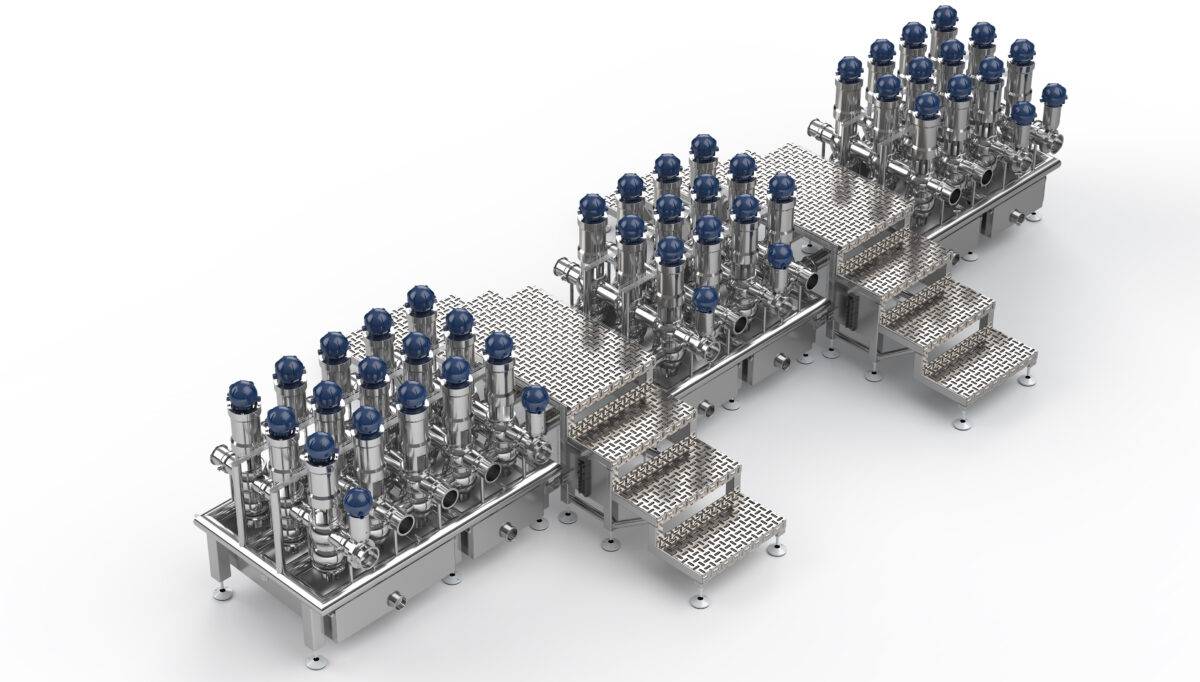

When installed horizontally, an HPS piggable Automatrix system can accommodate significant expansion in sources and destinations to meet with any future needs. When designed as a vertical space saving module, only the height restricts more lines being added. The modular design enables virtually limitless future growth in both source and destination lines.
Automatrix hps pigging

Liquid Transfer Specialists

HPS are the world’s leading specialists in industrial, hygienic and process pigging systems and liquid transfer technology. We’ve implemented the HPS piggable Automatrix in a wide variety of companies throughout the world.

To find out more, contact HPS or your nearest office or representative.
