Glossary of Pigging

Pigging, more formally known as liquid product recovery, is a process used by manufacturers of liquid or wet products to recover residual product from pipelines. The process involves sending a specialist projectile (known as a “pig”) through the pipeline to push residual product to its destination, rather than leaving it to be sent to waste.

Find out more about pigging.

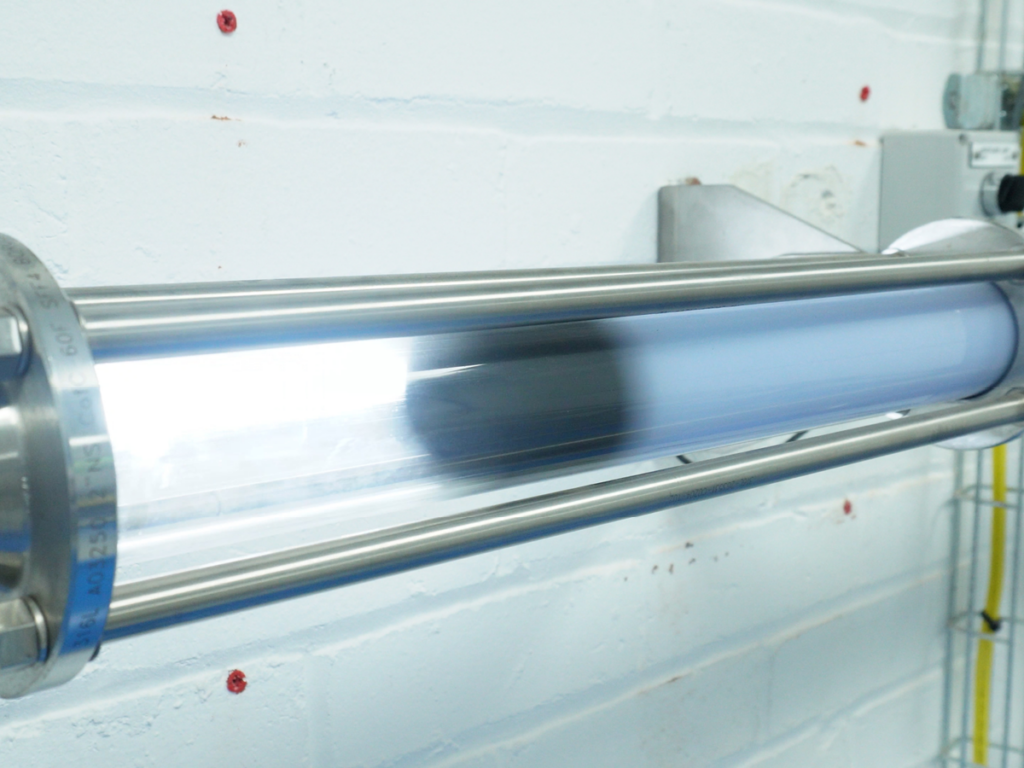

A specialist projectile designed to travel through pipelines to recover residual product.

Find out more about HPS pigs.

The specialised components that accommodate and facilitate the movement of pigs through the pipeline. Pig housing typically consists of a pig launcher and a pig receiver.

Pig launchers are valves designed to introduce the pig into the pipeline system.

Find out more about pig launchers.

Pig receivers are valves designed to catch the pig at the end of its journey.

Find out more about pig receivers.

A pig detector is a specialised device designed to detect the position of a pig as it moves through the pipeline.

Find out more about the HPS AccuTect Pig Detector.

An automated pigging system is a sophisticated product recovery solution that uses programmable logic controllers (PLCs), sensors, and actuators to execute pigging operations without human intervention.

Find out more about pigging system automation.

A liquid product recovery configuration that employs a single pig to travel through the pipeline recovering residual product. This is the most common type of pigging system configuration sold and is suitable for use in a wide range of applications and industries.

A liquid product recovery configuration that uses two separate pigs to perform product recovery operations within a pipeline. This system is designed for processes where the product cannot come into contact with air, such as wine, beer, and foam gel manufacturing.

A liquid product recovery configuration that offers product recovery and initial cleaning. The dual-pig pigging system pushes the product to its destination and utilises a measured slug of cleaning fluid immediately behind it to speed up the cleaning process. This system is designed for use in applications such as paint and coatings.

A liquid product recovery configuration designed for processes with multiple product destinations along the same pipeline. This system is most often used in conjunction with the single-pig pigging system.

The Automatrix is a specialised automated piggable liquid transfer solution designed for processes with multiple sources and multiple destinations.

Find out more about the Automatrix.

The Rotomatrix is a manual piggable liquid transfer solution designed for processes with multiple sources and multiple destinations.

Find out more about the Rotomatrix.
